Model SEV 17

Water softeners are typically used for removing calcium carbonate, manganese, iron and hardness from water sources and are regenerated by brine solutions.

Category:

Description

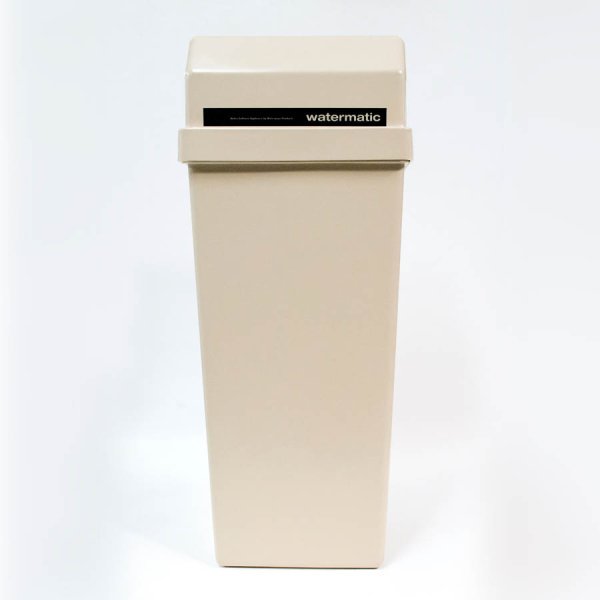

SEV17 Volumatic Water Softener

Product Description: Water softeners are typically used for removing calcium carbonate, manganese, iron and hardness from water sources and are regenerated by brine solutions. The treated water is soft and non scaling/staining. Commercial systems are available in single or twin (duplex) models and domestic units are available in cabinet style models.

Specifications

Type: Automatic Water Softener
Description: One piece roto moulded plastic cabinet with lid, containing salt and brine storage all in the unit
Capacity: 17,000 litres at 100 mg/l hardness
Resin Capacity: 28 litres of high grade softening resin

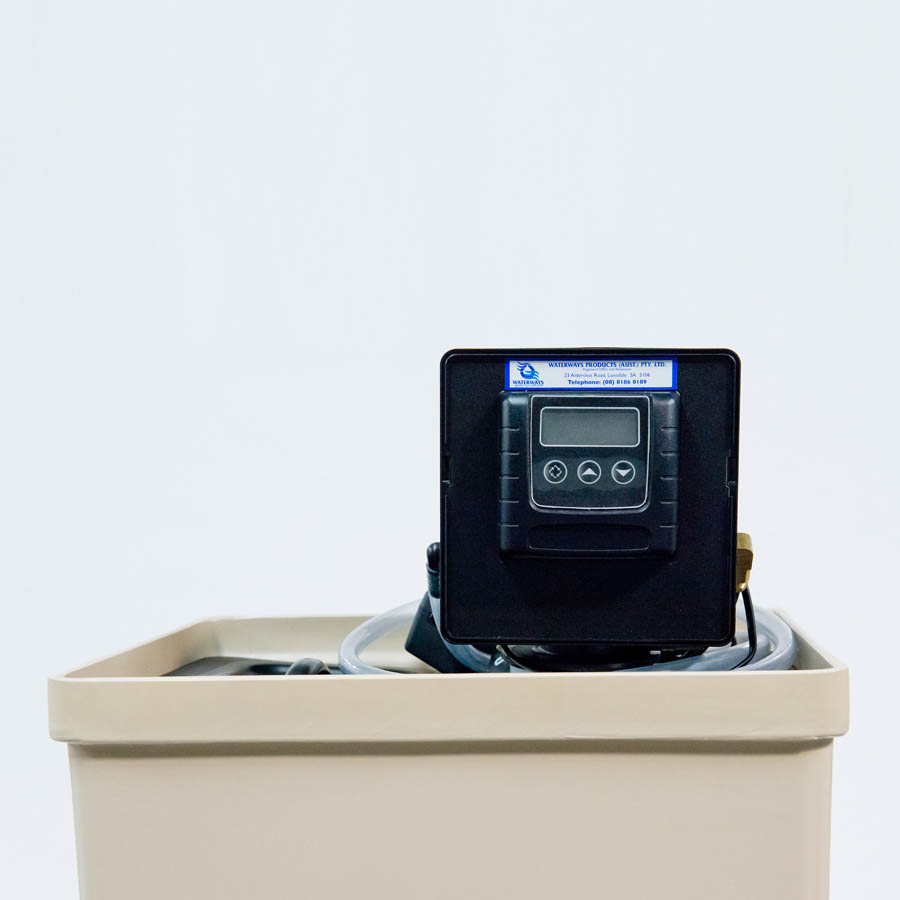

Control Valve: Fleck 5000 microprocessor 5 stage with regeneration, All functions fully adjustable, Valve controls brine refill
Pressure Vessel: Thermowound fibreglass with blow moulded seamless liner
Flow Rate: Continuous 35 litres per minute, Peak 40 litres per minute
Pressure: Maximum 600 kpa (85psi), Minimum 175 kpa (25psi)
Pipe Sizes: Inlet/outlet 3/4” (20mm), Drain 1/2” (15mm)
Salt Storage: 50kg capacity
Salt Usage: 4.5kg per regeneration
Dimensions: 1100mm (h) x 470mm (w) x 340mm (d)
Weight: 47kg (dry)
Voltage: 240 volts operation
